MEP Dynamo Toolkit: NEC-Compliant Revit Automation

Alfonso Davila

Streamline MEP workflows with six NEC 2023-compliant Dynamo scripts for Revit 2023–2025. Automate:

- Clash detection (electrical vs. HVAC, CSV output)

- Lighting placement (DIALux integration, NEC-compliant)

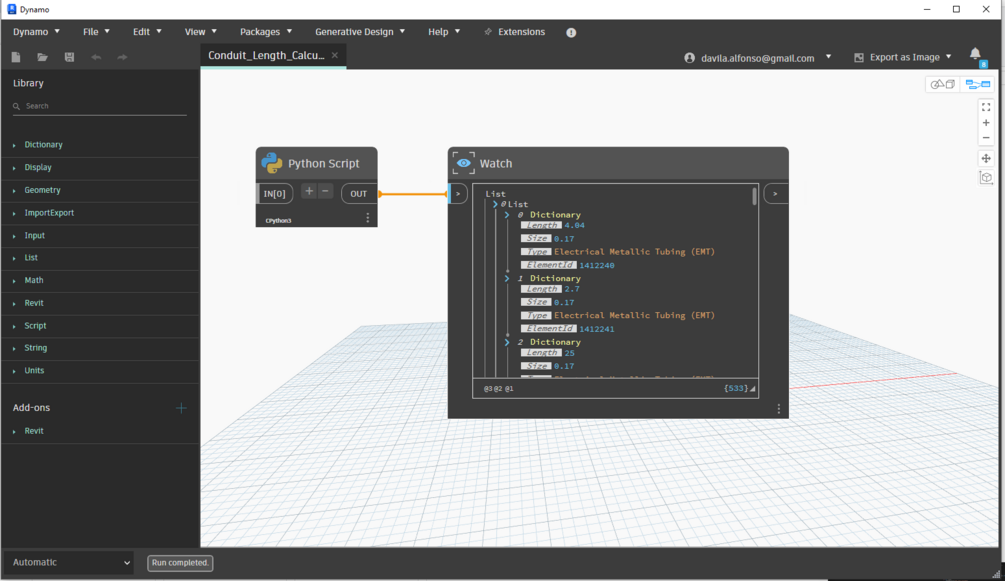

- Conduit length calculations (material takeoffs)

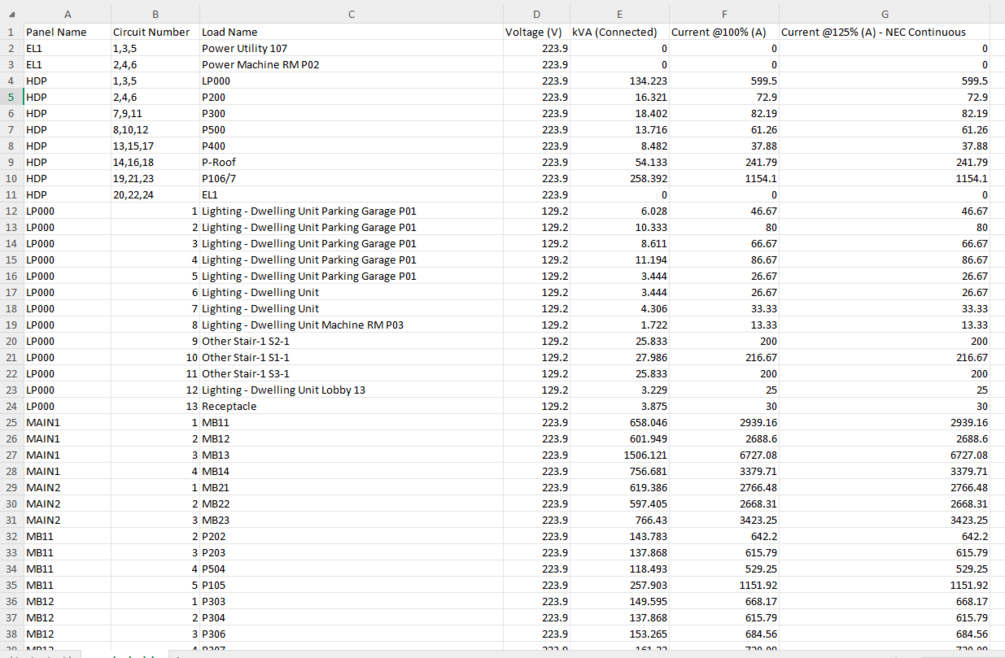

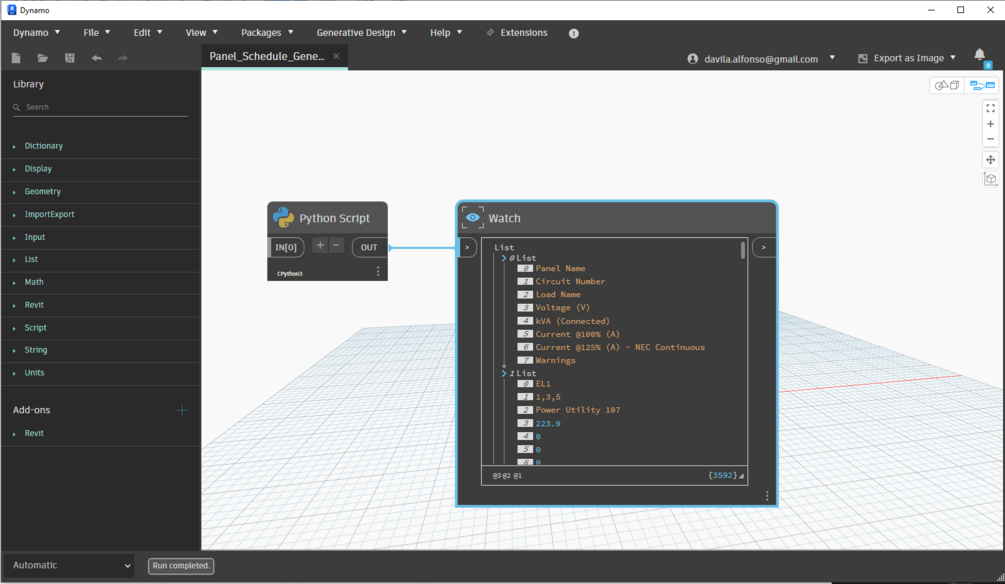

- Panel schedules (voltage correction, natural sorting)

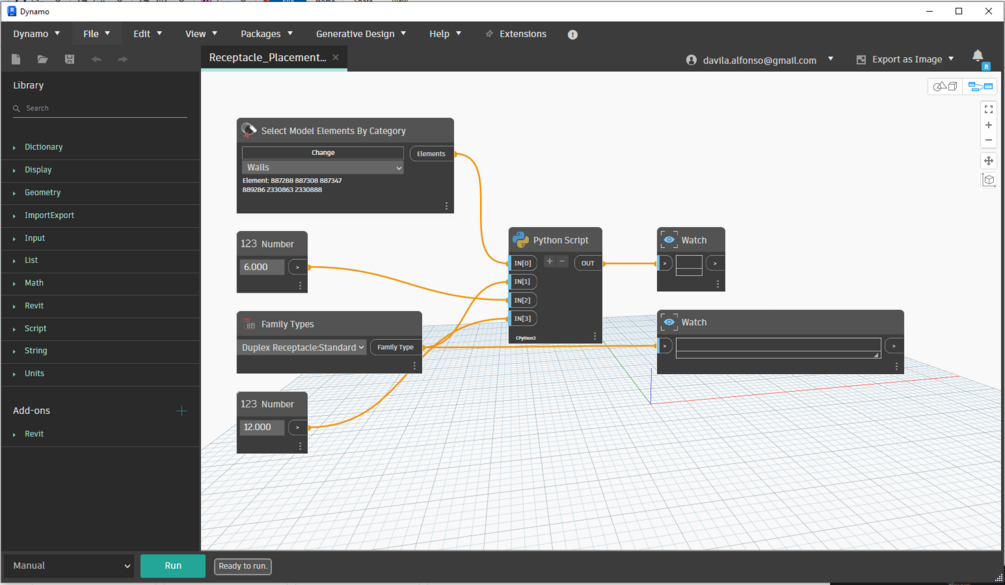

- Receptacle placement (dual-side walls)

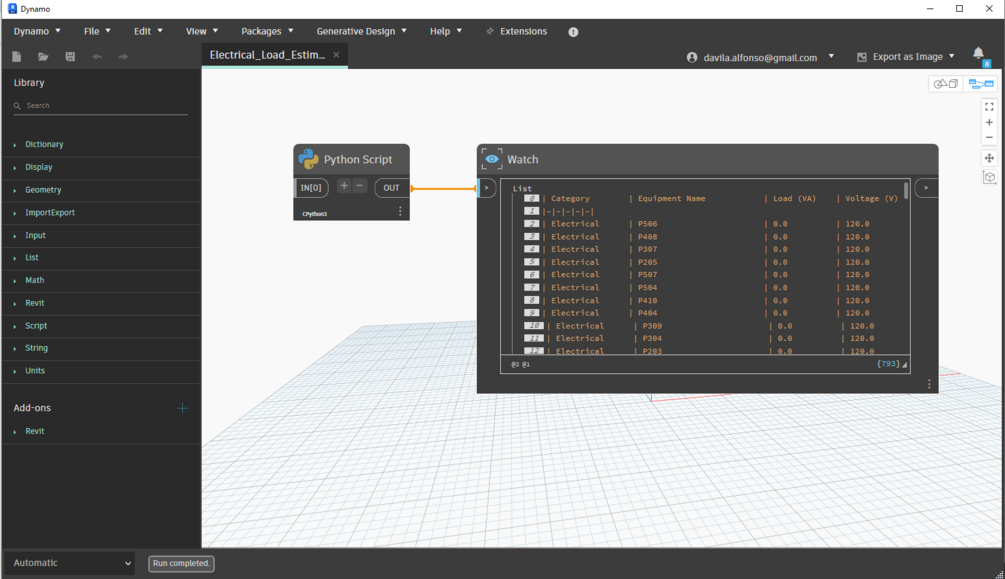

- Electrical load estimation (equipment, HVAC, lighting)

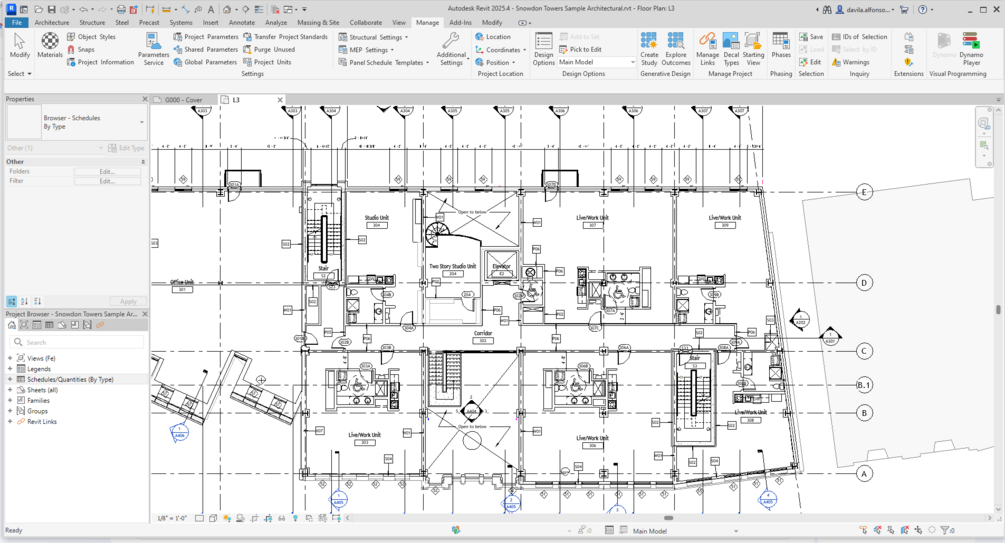

Includes scripts, sample Revit project, README, and screenshots. Save hours, ensure compliance, and boost BIM efficiency. 10% off first week!

Add to cart

Buyers will receive six NEC-compliant Dynamo scripts for Revit 2023–2025, automating MEP workflows like clash detection, lighting placement, conduit calculations, panel scheduling, receptacle placement, and load estimation, with CSV outputs, sample project, and setup guide.

Size

21.1 KB
